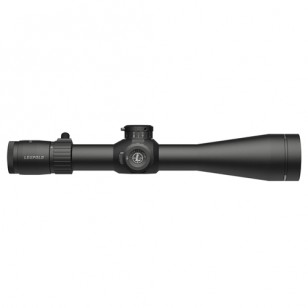

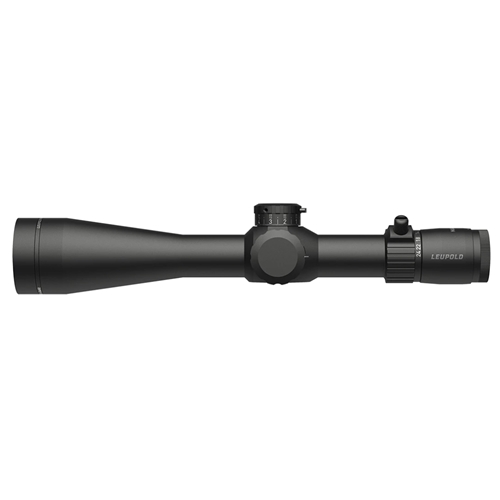

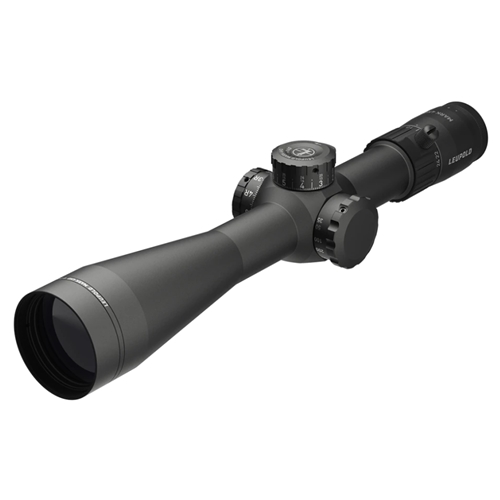

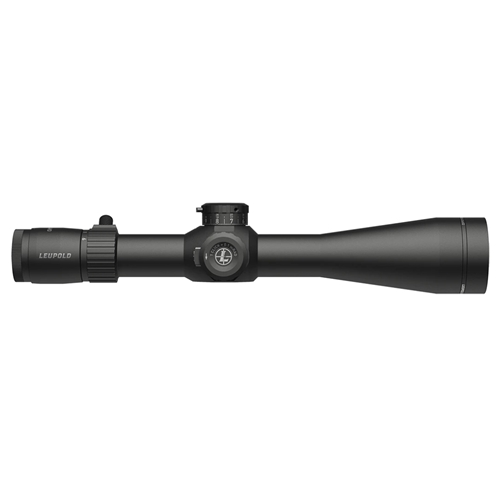

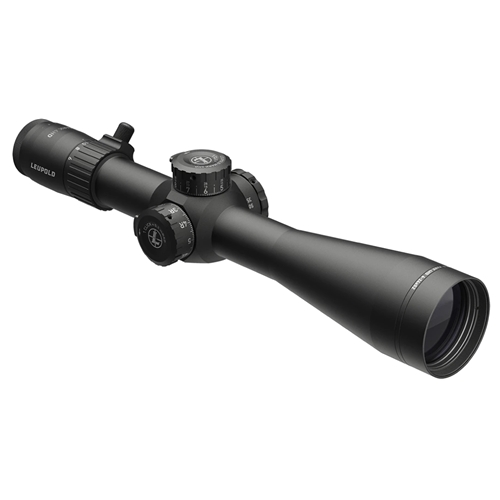

Mark 4HD 6-24x52 M5C3 Side Focus FFP PR3-MIL
Ready your rifles with a versatile Mark 4HD. We took the legendary performance of its predecessors and gave it a slimmer maintube that’s been packed full of professional-grade features. Whether you’re a dedicated enthusiast or a seasoned expert, the Mark 4HD’s optical clarity and lightweight design will get the job done at the range or in the field.
The Mark 4HD series features five magnification ranges, providing you with an accurate and reliable option for close-quarter engagements, long-range dominance, and everything in between. They’re available with a three-turn elevation dial for unmatched confidence at extreme distances, a precise ZeroLock windage adjustment that won’t budge when knocked around, and a side focus that delivers tack-sharp images as close as 25 yards. And like all Leupold riflescopes, they’re waterproof, fogproof, and backed by our lifetime guarantee.
Features
- 4:1 Zoom Ratio
- 25-Yard Side Focus
- Professional-Grade Optical System
- Removeable Throw Lever

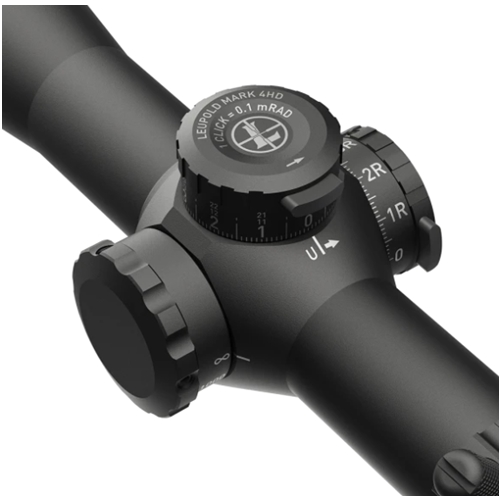

- M5C3 ZeroLock® Adjustments
- First Focal Plane
- Waterproof, Fogproof, & Shockproof
SPECIFICATIONS
| Adjustable Parallax | Side Focus |
| BDC Dial Included | No |
| Custom BDC Dial Compatible | Yes |
| Daylight Bright Illumination | No |
| Custom Dial System (CDS) | No |
| Elevation Adjustment Type | M5C3 |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Illuminated | No |
| Locking Dial | Yes |
| Magnification Type | Variable |
| Motion Sensor Technology (MST) | No |
| Nightvision Compatible Illumination | No |
| Reticle Focal Plane | First Focal Plane |
| Revolution Indicator | Yes |

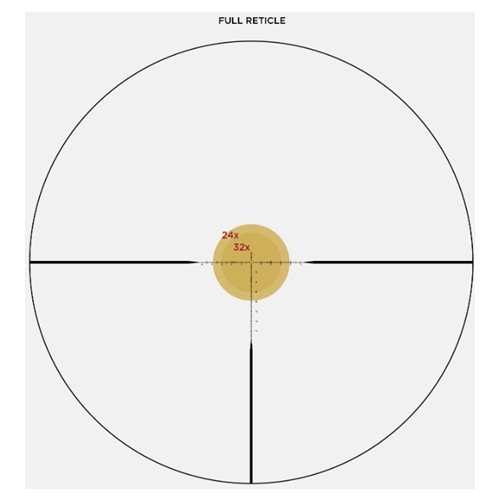

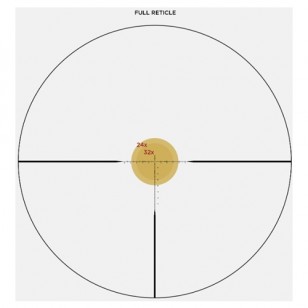

| Reticle | FFP PR3-MIL |
| Rezero Type | Set Screw |
| Reticle Type | First Focal Plane |
| Adjustable Objective | No |
| Side Focus | Yes |
| Windage Adjustment Type | Zero-Lock WIndage |
| Weight (oz) | 27.5 |
| Elevation Adjustment Value per Click | 0.1Mil |
| Elevation Adjustment Range (MOA) | 125 |
| Elevation Adjustment Range (MIL) | 36 |
| Elevation Adjustment Range (cm @ 100m) | 360 |
| Elevation Adjustment Per Revolution | 10 MIL |
| Elevation Dial Travel Limit | 28.7 MIL |
| Windage Adjustment Value per Click | 0.1Mil |
| Windage Adjustment Range (MOA) | 65 |
| Windage Adjustment Range (MIL) | 18 |
| Windage Adjustment Range (cm @ 100m) | 180 |
| Windage Adjustment Per Revolution | 10 MIL |
| Magnification Max | 24 |
| Magnification Min | 6 |
| Objective Lens Diameter (mm) | 52 |
| Linear FOV Low Mag (ft@100yds) | 17.3 |
| Linear FOV High Mag (ft@100yds) | 4.7 |
| Angular FOV Low Mag (Degrees) | 3.3 |
| Angular FOV High Mag (Degrees) | .9 |
| Eye Relief Low Mag (in) | 3.8 |
| Eye Relief High Mag (in) | 4 |
| Minimum Parallax-Free Distance (yd) | 25 |

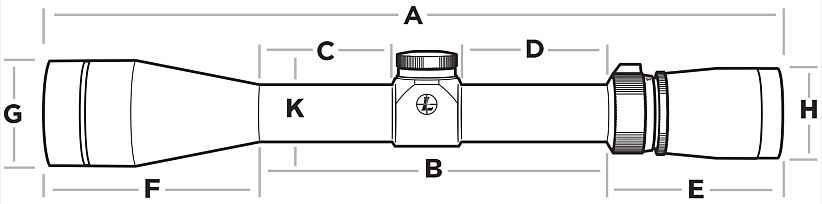

DIMENSIONS
| Total Length (in) - A | 14.6 |
| Total Mounting Space (in) - B | 6.3 |
| Front Mounting Space (in) - C | 1.9 |
| Rear Mounting Space (in) - D | 2.1 |
| Eyepiece Length (in) - E | 3.3 |
| Objective Length (in) - F | 5.1 |
| Objective Diameter (in) - G | 2.4 |
| Eyepiece Diameter (in) - H | 1.8 |
| Maintube Diameter (mm/in) - K | 34 mm |
