IMS (Integrated Mounting System)

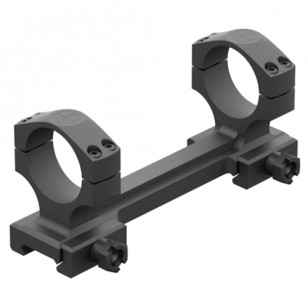

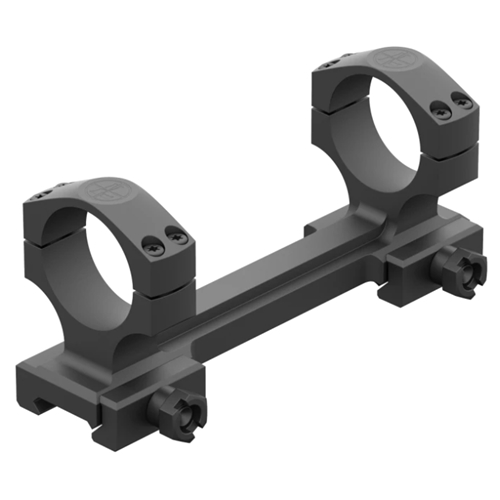

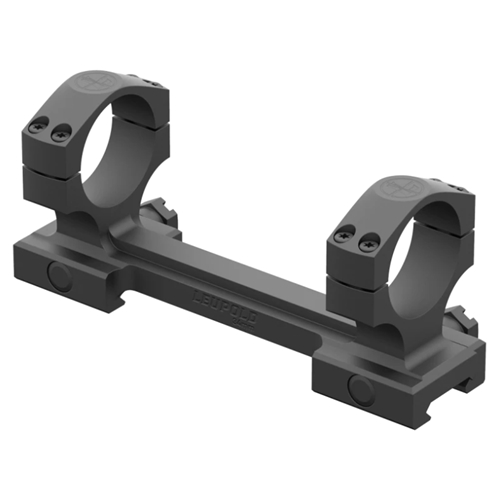

Mark IMS 34mm Bolt-Action 20 MOA
The Mark IMS™ family easily eliminates the two most common issues faced when mounting standard riflescopes to AR-style rifles; scope height and eye relief. This model is designed to fit your AR's MIL-spec 1913/Picatinny rail and any scope with a 34mm maintube. It also accounts for the extra space needed for modern bolt actions, while adding 20 MOA of elevation. Designed specifically for use with AR’s, IMS mounts features a forward cantilever design, placing your scope forward on the rail to provide you will a full field of view. The mount also places the center of the optic 1.5” off the rail, the same height as open sights on a classic AR, making it easier to look through your scope without struggling to get low enough to the stock. Nothing is more crucial than the link between your scope and firearm. That’s why our mounts are every bit as rugged and dependable as the Leupold optics they secure. And with a huge variety of mounting systems to pick from, you're sure to find the perfect match for your firearm and style of shooting. Made in the USA and guaranteed to hold up to a lifetime of abuse, Leupold mounts will never let you down.
Specifications
| Material | Aluminum |
| Base Cant | No |
| Ring Diameter | 34 mm |
| Ring Height (in) | 1.5 |
| Weight (oz) | 7.1 |
| Keeper Clamp Torque | 65 in-lbs |
| Ring Top Screw Torque | 28 in-lbs |
| Length (in) | 5.74 |
| Rear Offset (in) | .38 |
| Ring Depth (in) | .65 |
| Length Within Rings (in) | 3.68 |
| Ring Width (in) | 1.98 |
| Ring Height (in) | 1.5 |
