VX-3HD 6.5-20x50 Side Focus CDS-T Fine Duplex
The VX®-3HD 6.5-20x50mm delivers legendary performance in an incredibly tough and lightweight package. It's the perfect workhorse for taking mid to long-range shots from the firing line.
Using Leupold’s Elite Optical System, the VX-3HD provides superior dawn-to-dusk light transmission for a bright image when it matters most, high-performance glare reduction in harsh light, and the resolution and clarity diehard hunters and shooters demand. We also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves.
Everything we put into your VX-3HD is there to help you dominate the competition. With its CDS-T dial, you'll get access to the entire adjustment range of your scope in precise ¼-MOA increments. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
FEATURES
- 3:1 Zoom Ratio
- Custom Dial System
- Side Focus
- Elite Optical System
- High Definition
- Removeable Throw Lever
- Waterproof, Fogproof, & Shockproof

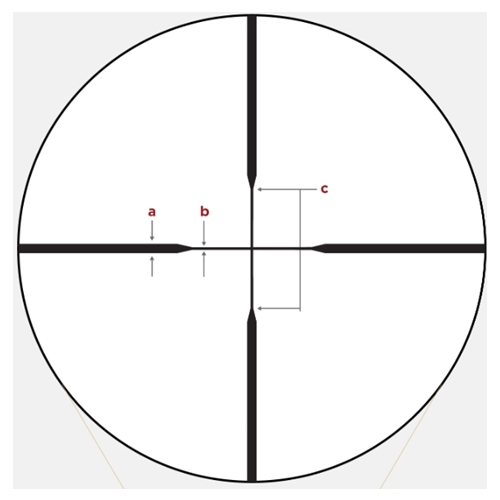

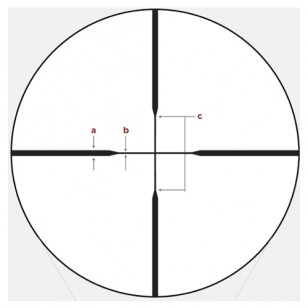

Fine Duplex
- Based on our Duplex® style design
- Thinner posts and crosshairs
- Better for precision shots
SPECIFICATIONS
| Adjustable Parallax | Side Focus |
| BDC Dial Included | No |
| Custom Dial Compatible | Yes |
| Daylight Bright Illumination | No |
| Elevation Adjustment Type | CDS-Target |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Illuminated | No |
| Locking Dial | No |
| Magnification Type | Variable |
| Motion Sensor Technology (MST) | No |
| Nightvision Compatible Illumination | No |
| Reticle Focal Plane | Second Focal Plane |
| Revolution Indicator | Yes |
| Reticle | Fine Duplex |
| Rezero Type | Set Screw |
| Reticle Type | Second Focal Plane |
| Adjustable Objective | No |
| Windage Adjustment Type | CDS-Target |
| Weight (oz) | 20.8 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 65 |
| Elevation Adjustment Range (MIL) | 19 |
| Elevation Adjustment Range (cm @ 100m) | 160 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Elevation Dial Travel Limit | Total Scope Travel |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 55 |
| Windage Adjustment Range (MIL) | 16 |
| Windage Adjustment Range (cm @ 100m) | 160 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 20 |
| Magnification Min | 6.5 |
| Objective Lens Diameter (mm) | 50 |
| Linear FOV Low Mag (ft@100yds) | 14.1 |
| Linear FOV High Mag (ft@100yds) | 5.8 |
| Angular FOV Low Mag (Degrees) | 2.7 |
| Angular FOV High Mag (Degrees) | 1.1 |
| Eye Relief Low Mag (in) | 4.4 |
| Eye Relief High Mag (in) | 3.6 |
| Minimum Parallax-Free Distance (yd) | 75 |

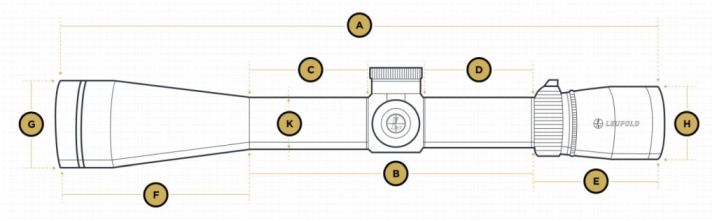

DIMENSIONS
| A Total Length (in) - A | 14.37 |
| B Total Mounting Space (in) - B | 6.44 |
| C Front Mounting Space (in) - C | 2.75 |
| D Rear Mounting Space (in) - D | 2.47 |
| E Eyepiece Length (in) - E | 3.08 |
| F Objective Length (in) - F | 4.85 |
| G Objective Diameter (in) - G | 2.3 |
| H Eyepiece Diameter (in) - H | 1.56 |
| K Maintube Diameter (mm/in) - K | 30 mm |
