MARK 5HD 5-25X56 M5C3 FFP PR1-MIL
Pick up a Mark 5HD™ 5-25x56mm and you'll feel the difference. It's up to 20 ounces lighter than other riflescopes in its class, giving you an advantage in the field or at the range. The versatile 5-25x magnification lets you dominate mid-range shots, while also giving you the flexibility to reach out to long distances.
DESCRIPTION
Pick up a Mark 5HD™ 5-25x56mm and you'll feel the difference. It's up to 20 ounces lighter than other riflescopes in its class, giving you an advantage in the field or at the range. The versatile 5-25x magnification lets you dominate mid-range shots, while also giving you the flexibility to reach out to long distances. With three revolutions of elevation adjustment and multiple reticle options, this scope will max out the performance of the latest long-range rifles and ammunition, guaranteed.
Built around Leupold’s Professional-Grade Optical System, the Mark 5HD offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter. Ergonomically designed with more tactile and audible click adjustments, larger numbers, and a high-speed throw lever, the Mark 5HD is built to put accurate fire downrange faster.
The unique combination of features, durability, and professional-grade optical performance guarantees that the Mark 5HD can handle any challenge you throw at it. It's 100% waterproof and fogproof, and like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.
FEATURES
- 5:1 ZOOM RATIO
- CUSTOM DIAL COMPATIBLE
- ZERO LOCK DIAL
- ZERO STOP
- M5C3 ZEROLOCK® ADJUSTMENTS
- TWILIGHT MAX HD
- SIDE FOCUS
- WATERPROOF, FOGPROOF, & SHOCKPROOF
SPECIFICATIONS
| Adjustable Parallax | Side Focus |
| BDC Dial Included | No |
| Daylight Bright Illumination | No |
| Custom Dial System (CDS) | No |
| Elevation Adjustment Type | M5C3 |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Illuminated | No |
| Locking Dial | Yes |
| Magnification Type | Variable |
| Motion Sensor Technology (MST) | No |
| Nightvision Compatible Illumination | No |
| Reticle Focal Plane | First Focal Plane |
| Revolution Indicator | Yes |

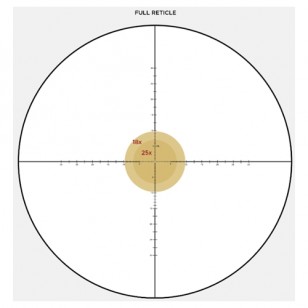

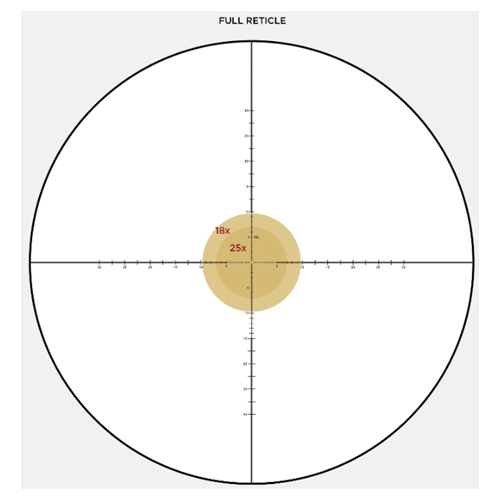

| Reticle | FFP PR-1MIL |
| Rezero Type | Set Screw |
| Reticle Type | First Focal Plane |
| Adjustable Objective | No |
| Windage Adjustment Type | Capped |
| Weight (oz) | 30 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 120 |
| Elevation Adjustment Range (MIL) | 35 |
| Elevation Adjustment Range (cm @ 100m) | 349 |
| Elevation Adjustment Per Revolution | 25 MOA |
| Elevation Dial Travel Limit | 71.5 MOA |
| Windage Adjustment Value per Click | 1/4 MOA |
| Windage Adjustment Range (MOA) | 60 |
| Windage Adjustment Range (MIL) | 17 |
| Windage Adjustment Range (cm @ 100m) | 175 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 25 |
| Magnification Min | 5 |
| Objective Lens Diameter (mm) | 56 |
| Linear FOV Low Mag (ft@100yds) | 20.4 |
| Linear FOV High Mag (ft@100yds) | 4.2 |
| Angular FOV Low Mag (Degrees) | 3.9 |
| Angular FOV High Mag (Degrees) | 0.8 |
| Eye Relief Low Mag (in) | 3.6 |
| Eye Relief High Mag (in) | 3.8 |
| Minimum Parallax-Free Distance (yd) | 50 |
DIMENSIONS
| Total Length (in) - A | 15.7 |
| Total Mounting Space (in) - B | 6.2 |
| Front Mounting Space (in) - C | 2 |
| Rear Mounting Space (in) - D | 2 |
| Eyepiece Length (in) - E | 3.3 |
| Objective Length (in) - F | 6.2 |
| Objective Diameter (in) - G | 2.5 |
| Eyepiece Diameter (in) - H | 1.8 |
| Maintube Diameter (mm/in) - K | 35mm |
