VX-FREEDOM 1.5-4X20 PIG-PLEX
The VX-Freedom delivers the legendary Leupold® performance and dependability hunters and shooters have demanded for decades. The 1.5-4x20mm model provides a wide field of view, while also allowing for precise, mid-range shots.
DESCRIPTION
The VX®-Freedom® delivers the legendary Leupold® performance and dependability hunters and shooters have demanded for decades. The 1.5-4x20mm model provides a wide field of view, while also allowing for precise, close to mid-range shots.
Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
FEATURES
- 3:1 ZOOM RATIO
- ADVANCED OPTICAL SYSTEM
- SECOND FOCAL PLANE
- SCRATCH RESISTANT LENSES
- WATERPROOF, FOGPROOF, & SHOCKPROOF
SPECIFICATIONS
| Adjustable Objective | No |
| Side Focus | No |
| Elevation Adjustment Type | Finger Click |
| Locking Dial | No |
| Revolution Indicator | No |
| Rezero Type | Resettable Index Ring |
| Windage Adjustment Type | Finger Click |
| Custom Dial System (CDS) | No |
| Custom Dial Compatible | No |
| BDC Dial Included | No |
| Reticle Type | Second Focal Plane |

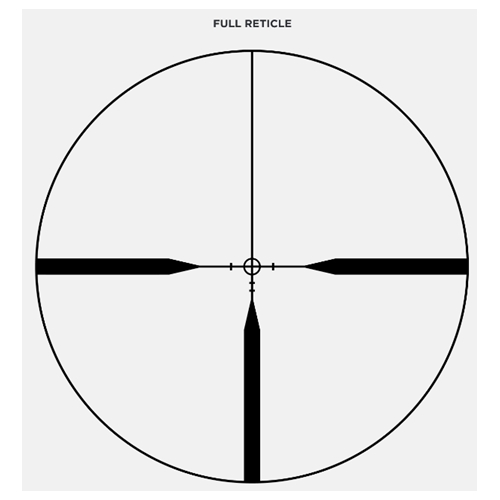

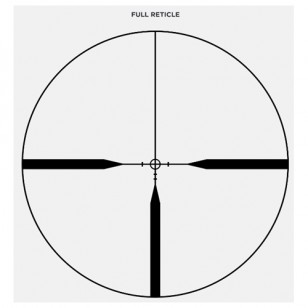

| Reticle | Pig-Plex (VX-Freedom) |
| Magnification Type | Variable |
| Illuminated | No |
| Nightvision Compatible Illumination | No |
| Daylight Bright Illumination | No |
| Motion Sensor Technology (MST) | No |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Weight (oz) | 9.6 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 125 |
| Elevation Adjustment Range (MIL) | 36 |
| Elevation Adjustment Range (cm @ 100m) | 364 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Magnification Max | 4 |
| Magnification Min | 1.5 |
| Objective Lens Diameter (mm) | 20 |
| Linear FOV Low Mag (ft@100yds) | 74.2 |
| Linear FOV High Mag (ft@100yds) | 29.4 |
| Angular FOV Low Mag (Degrees) | 14.1 |
| Angular FOV High Mag (Degrees) | 5.6 |
| Eye Relief Low Mag (in) | 4.2 |
| Eye Relief High Mag (in) | 3.7 |
| Fixed Parallax-Free Distance (yd) | 150 |
DIMENSIONS
| A Total Length (in) - A | 9.35 |
| B Total Mounting Space (in) - B | 5.4 |
| C Front Mounting Space (in) - C | 2.17 |
| D Rear Mounting Space (in) - D | 1.85 |
| E Eyepiece Length (in) - E | 3.5 |
| F Objective Length (in) - F | .45 |
| G Objective Diameter (in) - G | 1 |
| H Eyepiece Diameter (in) - H | 1.56 |
| K Maintube Diameter (in) - K | 1 |
