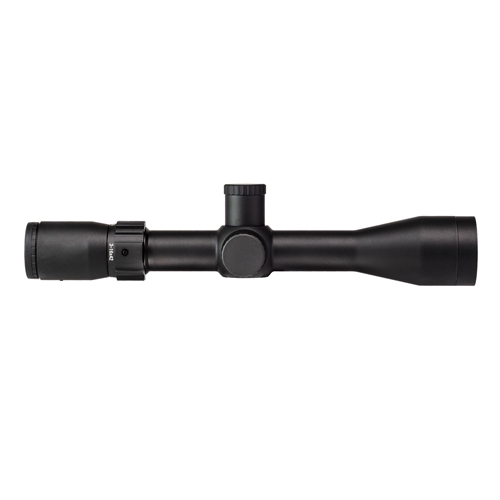

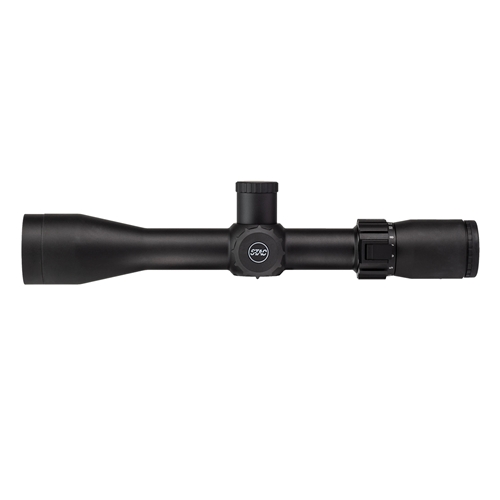

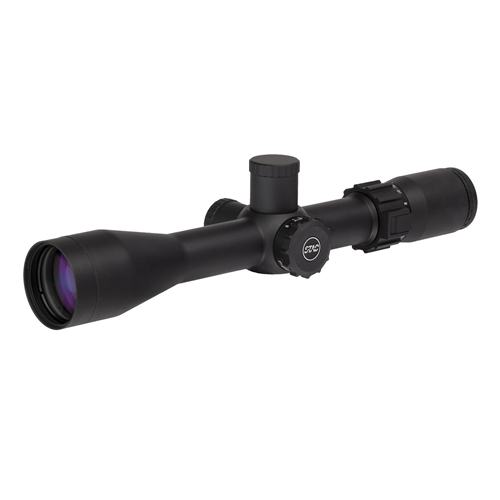

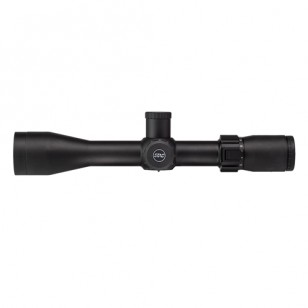

S-TAC 3-16X42

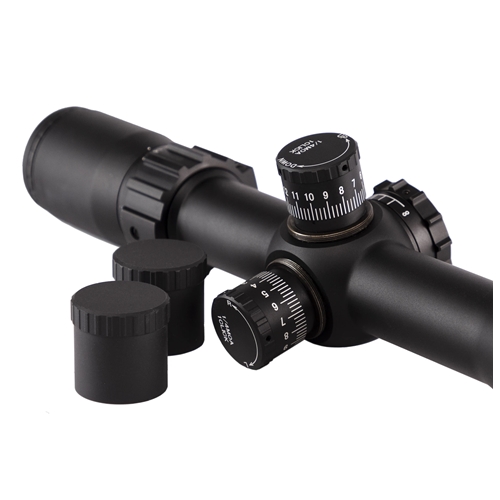

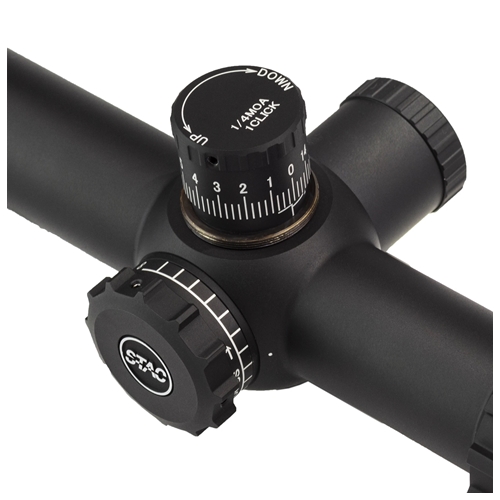

- Covered Target Turrets
- Zact-7 Revecoat® Multicoating for excellent light transmission
- Exclusive ExacTrack Windage and Elevation adjustment system
- 30mm one-piece tube design for maximum durability
- Second Focal Plane MOA-3 Reticle design
- Lifetime Warranty
- *ขา 171479 สำหรับราง 20 มม.
DESCRIPTION

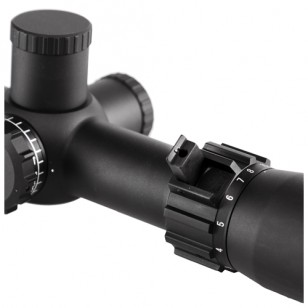

The S-TAC 3-16x42 is the ideal scope for target, varmint, and hunting applications. The MOA-3 reticle is a favorite for the AR-platform that provides ample windage and elevation adjustments for competition and targets. A unique flip-up lever is built into the power ring for easy adjustments of cold days.
Features
| ExacTrack W&E System | Never experience drift with Sightron's patented windage and elevation adjustment technology. It provides proper alignment between the adjustments and the erector tube by maintaining the same constant and accurate point of pressure at zero or extreme adjustments. |
| Exclusive Optical Design | Using the right materials for the right application, Sightron engineers build optical formulas around the best optical glass to reduce chromatic aberrations, improve color accuracy, deliver excellent light transmission, and best-in-class resolution and sharpness. |
| Zact-7 Revcoat® | Exclusive Zact-7 Revcoat® multi-coating process employs revolutionary lens coating technology on both surfaces of the lenses for maximum anti-reflection performance and the high light transmission. |
| Second Focal Plane Reticle | The reticle size remains constant at any zoom range. |
| Reticle Material | Etched Wire reticle for a superior viewing experience |
| Shockproof | Built to withstand high caliber recoil and accidental impact |
| Waterproof | Rated at IPX7 waterproof standards |
| Fog proof | Nitrogen gas charged for a lifetime of fog free use |
| Tube Construction | Milled from a single piece of lightweight, industrial grade aluminum |
Specifications
| Magnification | 3-16x |
| Objective Lens Diameter | 42mm |
| Eye Relief | 3.8 - 4.1 inches |
| Field of View | 32.3 - 6.1ft @100 yds |
| Tube Size | 30mm |
| Turret Style | Target (Resettable) |
| Zero Stop | No |
| Click Value | 1/4 MOA |
| Minutes Per Revolution | 15 MOA |
| Max Elevation Adjustment | 70 MOA |
| Max Windage Adjustment | 70 MOA |
| Parallax Setting | 10yds to Infinity |
| Focus Type | Side Focus |
| Reticle Type | MOA-3 |
| Focal Plane | Second |
| Illumination | No |
| Finish | Matte Black |
| Waterproof | Yes - IPX 7 rated |
| Anti-Reflection Tech | Exclusive Zact-7 Revcoat® Multi-coating |
| Fog Proof | Yes |
| Length | 12.9 inches |
| Weight | 23.3oz |
| Sunshade | Included |

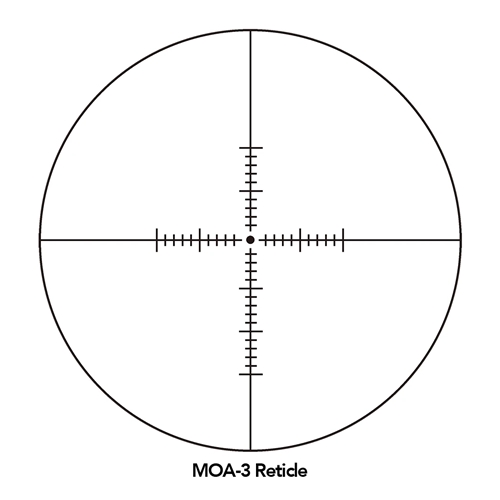

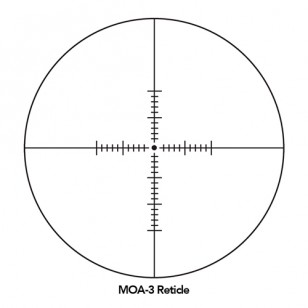

The MOA-3 reticle provides 30 MOA of elevation markings versus 20 MOA on the MOA-2 reticle. The reticle provides a floating center dot and is ideal for scopes with a large field of view where additional elevation adjustments may be necessary. An excellent choice for target shooters.
MOA-3 Measured in MOA 3x at 100 yards
| A | B | C | D | E | F | G | H |
| 200 | 150 | 50 | .4 | 10 | 20 | 10 | 1.25 |
MOA-3 Measured in MOA 16x at 100 yards
| A | B | C | D | E | F | G | H |
| 40 | 30 | 10 | .08 | 2 | 4 | 2 | .25 |
Scope Dimensions
Dimensions in Inches
| A | B | C | D | E | F | G | H |
| 12.8 | 5.8 | 2.4 | 1.9 | 3.5 | 3.3 | 2.0 | 1.7 |
